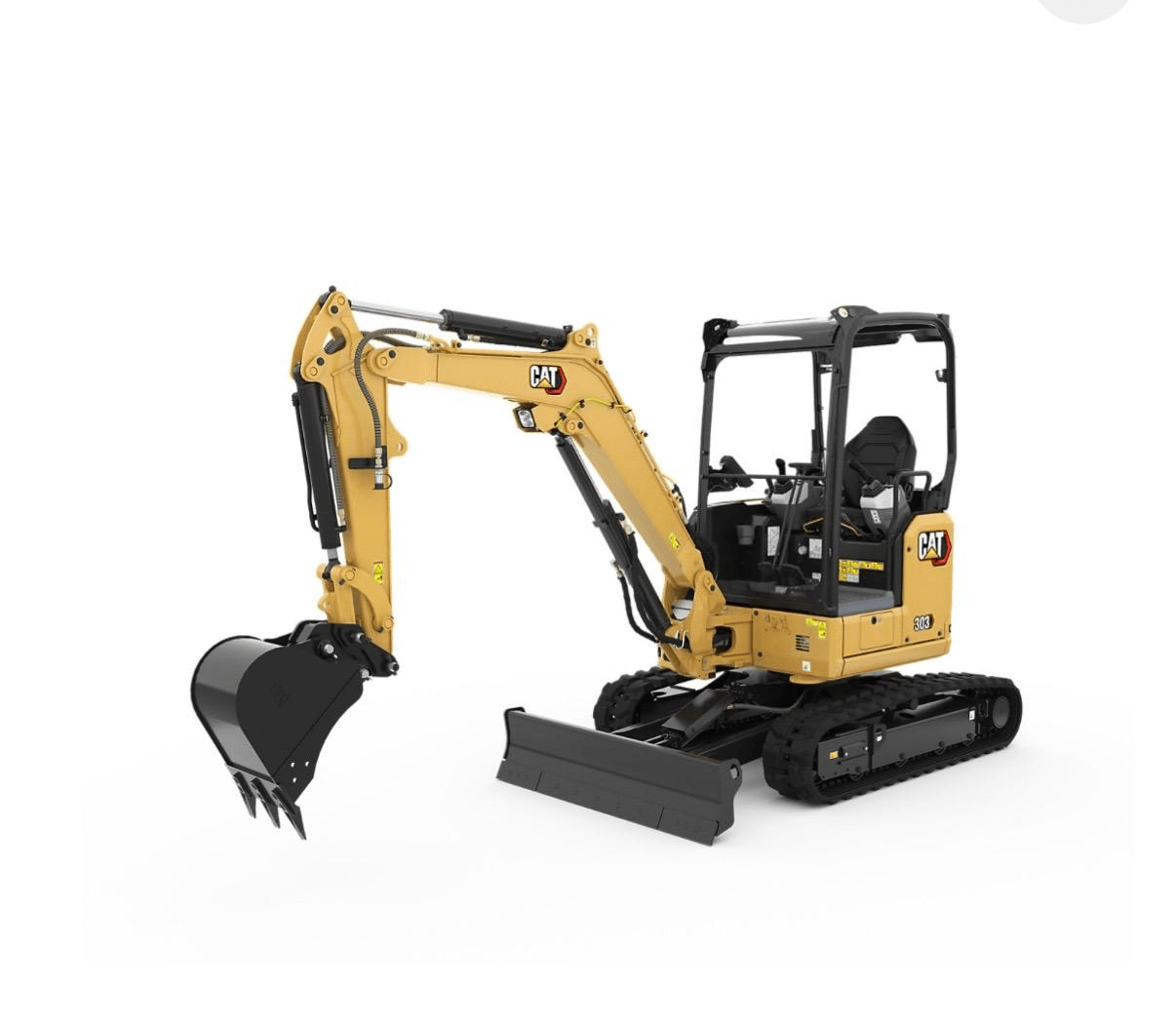

Manufacturer: CAT
Model: 303.5 CR
Daily: $
Weekly: $
Monthly: $
Need this equipment? Call us today!
DESCRIPTION
Key Specifications
- Engine: Cat C1.7 (23.6 hp / 17.6 kW net power)
- Operating Weight: 7,673 to 9,239 lbs (3,480–4,190 kg), depending on cab/canopy configuration
- Max Dig Depth: 122.4 inches (3,110 mm)
- Max Cutting Height: 16.6 feet with standard stick
- Tail Swing: Zero-tail or compact radius (approximately 37.8 inches) for tight workspaces
- Travel Speed: Up to 2.8 mph (4.5 km/h)
Dimensions
- Width: 1,780 mm (approximately 5.8 feet)
- Height Over Cab: 8.0 feet (2,440 mm)
- Ground Clearance: 1.0 foot (0.3 m)
Hydraulic System
- Auxiliary Flow: 7 gpm (25 L/min)
- Operating Pressure: 3,553 psi (245 bar)
- System Type: Load sensing hydraulics with variable displacement piston pump
Manufacturer: CAT
Model: 308 CR
Daily: $
Weekly: $
Monthly: $
Need this equipment? Call us today!
DESCRIPTION
The Cat 308 CR is a compact radius mini hydraulic excavator weighing approximately 18,500 to 20,600 lbs (depending on the configuration). It is highly prized for its versatility in tight jobsites, delivering 69.5 hp and up to 185 inches of maximum digging depth.
Performance & Capabilities
- Net Power: 69.5 hp (51.8 kW) – Cat C3.3B engine
- Operating Weight: 18,493–20,678 lbs
- Maximum Dig Depth: 161.8 in (standard stick); 185.0 in (long stick)
- Maximum Reach: 281.1 in (standard stick); 300.7 in (long stick)
- Bucket Dig Force: 13,946 lbf (62.0 kN)
- Stick Dig Force: 9,509 lbf (42.3 kN)

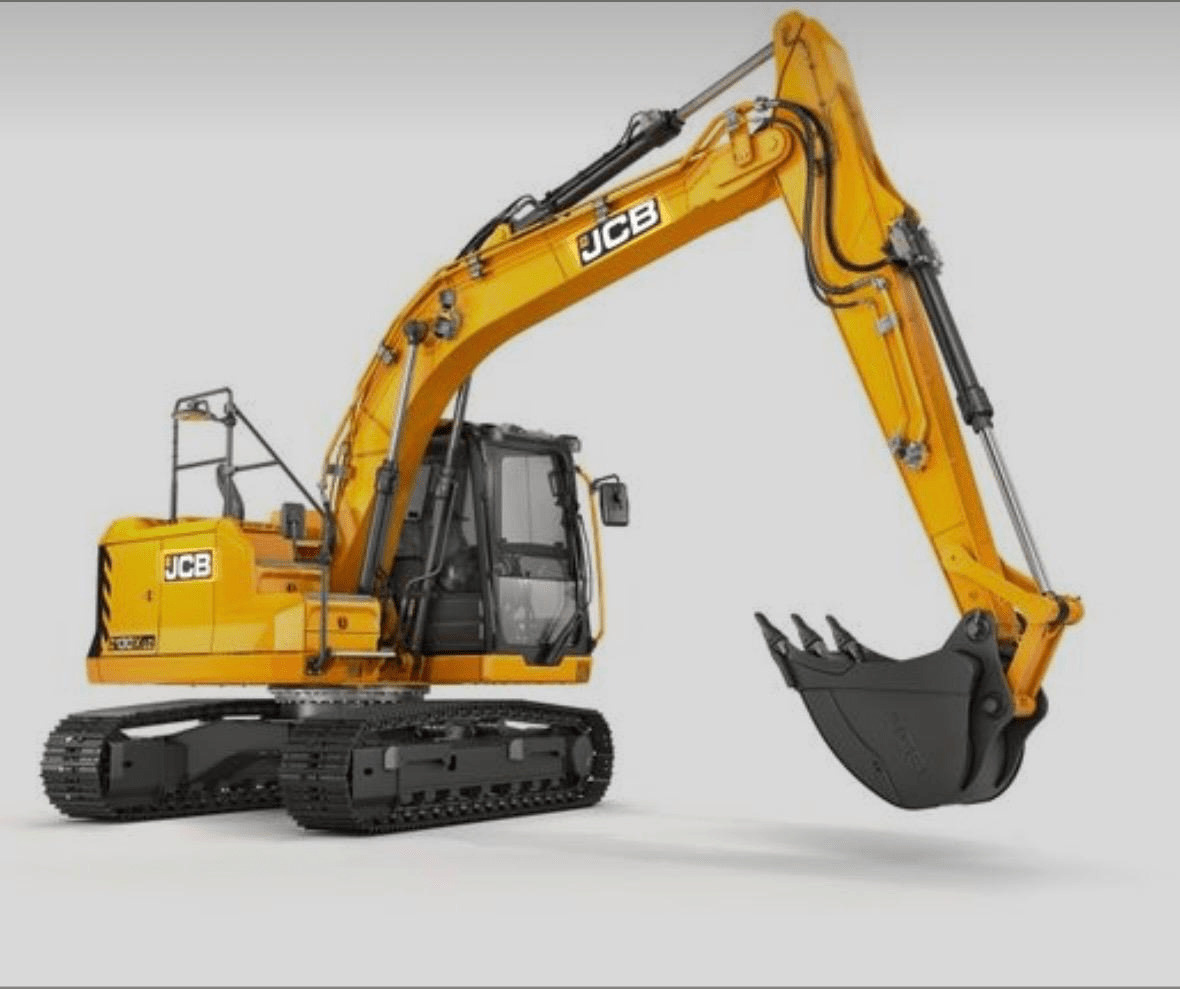

Manufacturer: JCB
Model: JCB 131X
Daily: $
Weekly: $
Monthly: $
Need this equipment? Call us today!
DESCRIPTION
The JCB 131X is a 14.8-ton tracked excavator powered by a 74 hp JCB EcoMAX engine. A standout feature is that the engine requires no replaceable DPF or DEF. It offers a maximum dig depth of approximately 19 feet 10 inches and an operating weight of around 32,670 lbs, making it ideal for heavy-duty excavation, site development, utility work, and large construction projects.
Key Specifications
- Operating Weight: Approximately 31,500–32,670 lbs (14,288–14,819 kg)
- Engine Power: 74 hp (55 kW)
- Engine Type: JCB EcoMAX 444 TCA Tier 4 Final
- Maximum Dig Depth: 19 ft 9 in to 19 ft 10 in (6.03–6.05 m)
- Maximum Reach (Ground): Up to 26 ft 3 in (8.0 m)
- Bucket Capacity: Up to 1.16 yd³ (0.89 m³)
- Tailswing: Conventional
